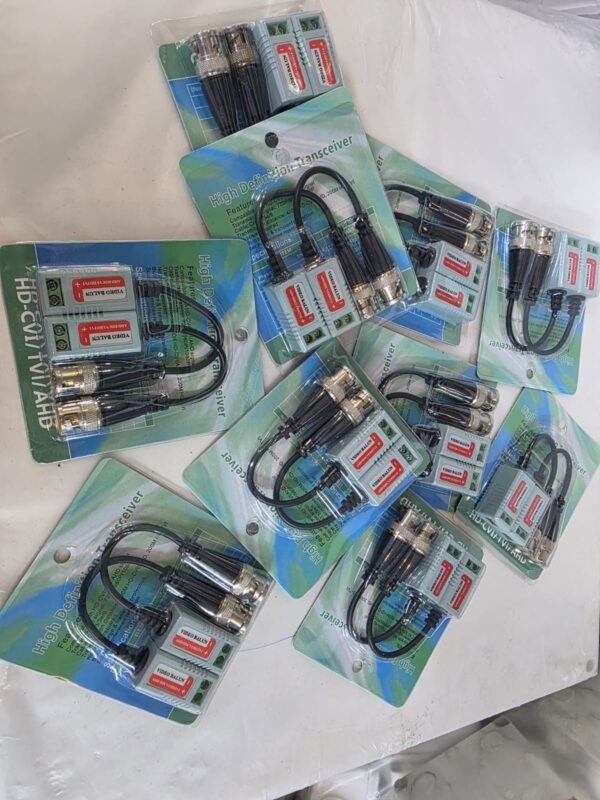

CCTV Video Baluns Connector

Description

CCTV Video Baluns Connector – Stable Video Transmission Over Long Distances

The CCTV Video Baluns Connector is an essential component for modern surveillance systems, allowing CCTV cameras to transmit high-quality video signals over long distances using cost-effective twisted pair cables such as Cat5e or Cat6. By converting the unbalanced signal from a CCTV camera into a balanced signal, the balun reduces interference, signal loss, and distortion—ensuring a clear and stable video feed for monitoring and recording.

Whether you’re upgrading an existing CCTV system or installing a new one, video baluns offer a simple, reliable, and cost-saving solution for extending your video transmission range without the need for expensive coaxial cables.

High-Quality Video Transmission

CCTV video baluns are designed to maintain excellent signal integrity even over distances of up to 300 meters (depending on camera type and cable quality). This makes them perfect for large properties, office complexes, warehouses, and multi-building surveillance setups.

Easy to Install and Use

One of the biggest advantages of video baluns is their plug-and-play design. Simply connect the BNC connector to your camera or DVR, and attach the twisted pair cable to the screw terminals or RJ45 port. No special tools or complex configuration is required, making installation quick and hassle-free.

Cost-Effective Cabling Solution

Instead of using expensive RG59 coaxial cable, baluns allow you to run video signals over affordable Cat5e or Cat6 network cables. This not only reduces material costs but also makes cable management easier, as a single UTP cable can carry multiple video feeds when paired with multiple baluns.

Noise and Interference Reduction

The balanced signal transmission provided by video baluns helps minimize electromagnetic interference (EMI) and radio frequency interference (RFI). This ensures a clean, stable video signal, even in electrically noisy environments such as industrial areas or near heavy machinery.

Versatile Applications

CCTV video baluns work with a wide range of analog CCTV formats, including CVBS, HD-TVI, HD-CVI, and AHD. They are suitable for both indoor and outdoor camera installations and can be used in:

• Residential home security

• Commercial building surveillance

• Factory and warehouse monitoring

• School and campus security systems

Different Types of CCTV Video Baluns

There are various types of baluns available depending on your installation needs:

1. Passive Video Baluns – Require no power and transmit video over medium distances (up to ~300m).

2. Active Video Baluns – Require power and can extend video transmission over longer distances (up to ~1,200m).

3. Single Channel Baluns – Handle one video signal per balun.

4. Multi-Channel Baluns – Handle multiple video signals, ideal for larger setups.

Technical Specifications (Typical Passive Video Balun)

• Video Formats: CVBS, HD-TVI, HD-CVI, AHD

• Transmission Distance:

  • CVBS: Up to 300m

  • HD-TVI/HD-CVI/AHD: Up to 200m

• Connectors: BNC (video) + Screw terminal or RJ45 (UTP)

• Cable Type: Cat5e, Cat6 UTP

• Impedance: 75Ω (BNC) to 100Ω (UTP)

• Operating Temperature: -10°C to 60°C

• Power Requirement: None (for passive baluns)

Benefits of Using CCTV Video Baluns

• Longer transmission range compared to traditional coaxial setups

• Lower installation costs thanks to cheaper cable options

• Improved cable management when using structured wiring

• Reduced signal loss and interference for clearer video

• Compatibility with various analog CCTV systems

Why Choose CCTV Video Baluns Connector?

If you need a cost-efficient, reliable, and interference-resistant way to transmit CCTV video signals over long distances, a video baluns connector is the perfect solution. It’s easy to install, works with standard twisted pair network cables, and helps maintain clear video quality for effective surveillance.

From small home setups to large-scale commercial security networks, video baluns have become a preferred choice for professional installers due to their affordability, simplicity, and performance.
